Order Sporlan IB-G Valve Division (953580)
Telephone: (+84) 327.299.154
Wechat:
WhatsApp:
Line:
Fanpage Facebook: Kỹ thuật HVACR Việt Nam
| Brand | Sporlan |
| Model | IB-G |
| P/N | 953580 |
| Input Voltage | 22 - 28 VAC 50/60 Hz, 22- 28 VDC Class II Power |
| Indicator Color | LED - Red Power, LED - Yellow Valve Closed, LED - Green Valve Open |
| Signal Input | 0-10 VDC, 4-20 mA |
| Output Voltage | 12 VDC Stepper Motor Signal |
| Minimum Operating Temperature | -40 °F, -40 °C |
| Maximum Operating Temperature | 158 °F, 70 °C |
| Minimum Storage Temperature | -40 °F, -40 °C |
| Maximum Storage Temperature | 185 °F, 85 °C |
| Operating Humidity | 10 - 95% Relative Humidity |
| Mounting Type | SNAP Track, Mounting Holes |
| Net Weight | 0.2 Kg |
| Country of Origin | Made in China |
Product Description:
/1.png)
/2.png)
/3.png)
/4.png)
/5.png)

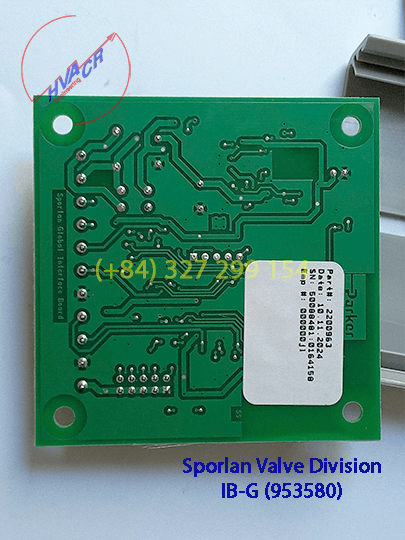

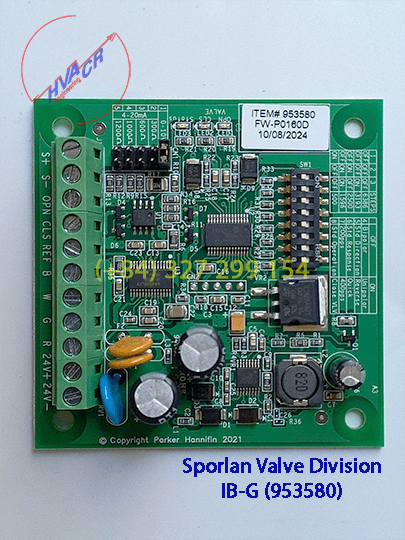

The IB-G is a small electronic circuit board that extends the functionality of an external system controller to drive step motor valves. The external controller must provide an analog 0-10VDC or 4-20mA signal to the IB-G.
The IB-G has been developed with all of the functionality of the following IB Series Interface Boards including quick response versions: IB 1, IB 2, IB 3, IB 6 and IB ESX. All of these options are configurable on the IB-G. The IB-G can accept 4-20 milliamp or 0-10 volt DC analog input signals and is designed to allow externally supplied control signals to control one or two Sporlan step motor valves including CDS evaporator control valves, SDR electric discharge bypass valves, and SEI/SER/SEH/SEV/ESX* electric expansion valves. Enhanced features include LED indicators for power and valve position, option for 400 pulses per second (pps), and a valve open or close feature.
Infomation to order the product/Thông tin liên hệ mua sản phẩm:
HVACR VIET NAM ENGINEERING CO.,LTD/ CÔNG TY TNHH KỸ THUẬT HVACR VIỆT NAM
Address: 331/70/45A Phan Huy Ich Street, Ward 14, Go Vap District, HCM City, Vietnam
Telephone/ Điện thoại: (+84) 327.299.154
