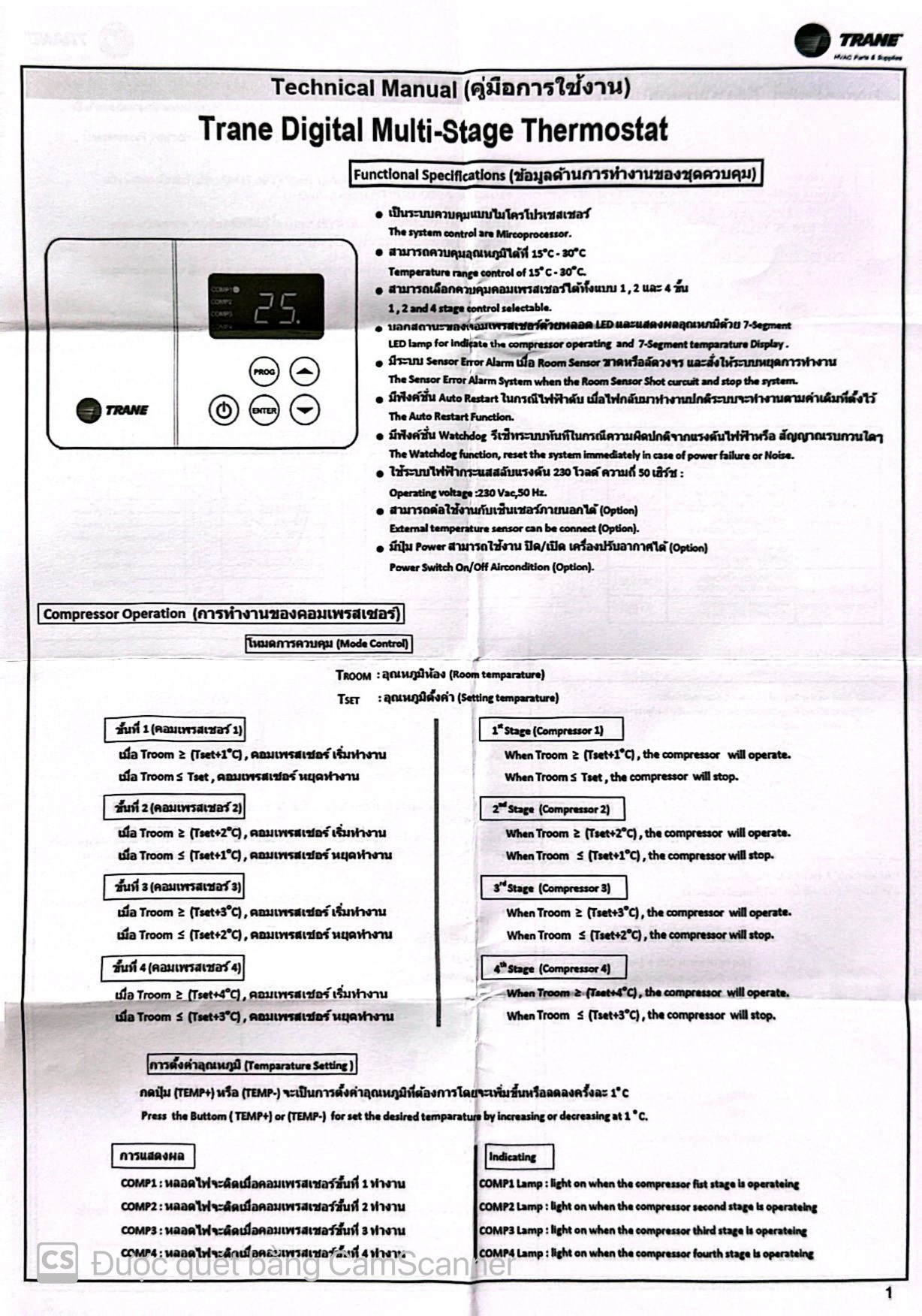

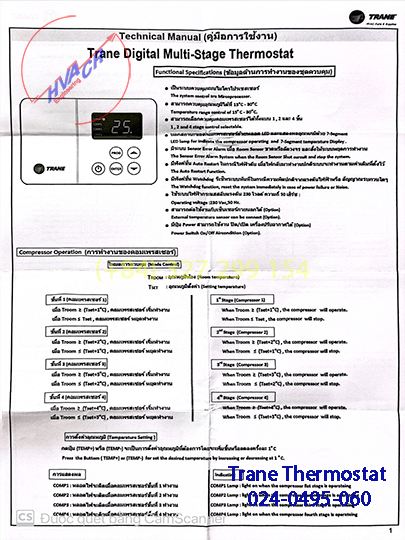

Functional Specifications:
- 1, 2 and 4 stage control selectable.
- LED lamp for indicate the compressor operating and 7-Segment temparature Display.
- The sensor Error Alarm System when the Room Sensor Shot curcuit and stop the system.
- The auto Restart Fuction.
- The Watchdog function, reset the system immediately in case of  the power failure or Noise.
- External temperature sensor can be connect (Option)
- Power Switch On/Off Aircondition (Option)

Compressor Operation:
     Mode control: + Troom (Room temparature)   ;   + Tset (Setting temparature)

- 1st Stage (Compessor 1)
    + When Troom ≥  (Tset +1˚C), the compressor will operate.
    + When Troom ≤ Tset, the compressor will stop.

- 2nd Stage (Compessor 2)
    + When Troom ≥  (Tset +2˚C), the compressor will operate.
    + When Troom ≤  (Tset +1˚C), the compressor will stop.

- 3rd Stage (Compessor 3)
    + When Troom ≥  (Tset +3˚C), the compressor will operate.
    + When Troom ≤ (Tset +2˚C), the compressor will stop.

- 4th Stage (Compessor 5)
    + When Troom ≥  (Tset +4˚C), the compressor will operate.
    + When Troom ≤ (Tset +3˚C), the compressor will stop.

- Temparature Setting: Pess the Button (TEMP+) or (TEMP-) for set the desired temparature by increasing or descreasing at 1˚C

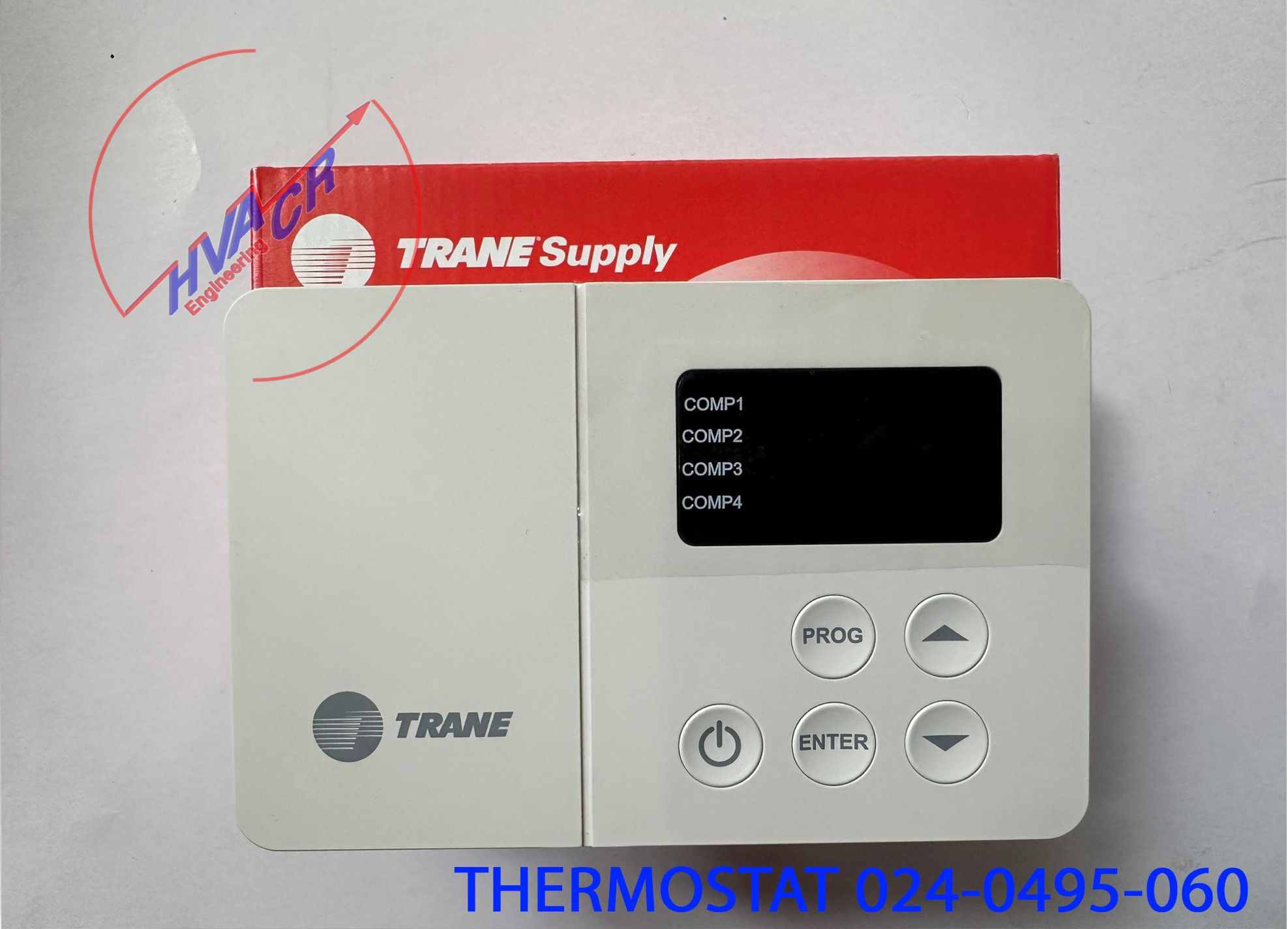

- Indicating:

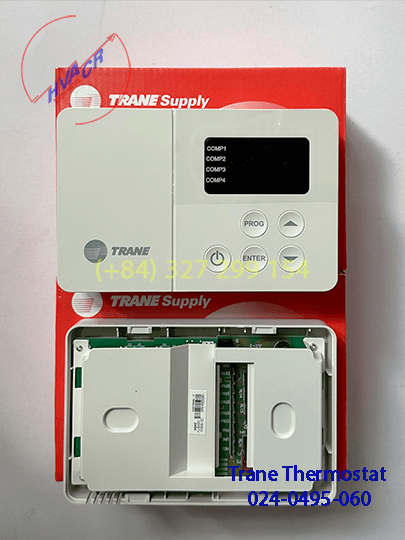

    + COMP1 Lamp: light on when the compressor first stage is operateing
    + COMP2 Lamp: light on when the compressor second stage is operateing
    + COMP3 Lamp: light on when the compressor third stage is operateing
    + COMP4 Lamp: light on when the compressor fourth stage is operateing
